FV-Filter

Abstract 概要
The marker tracker and the proximity vision are designed to be general; the output of them is a kind of low-level values. FV-Filter converts these values to ones that are easy to use in control. For example, the marker movements are converted to the force estimate.

Overview †

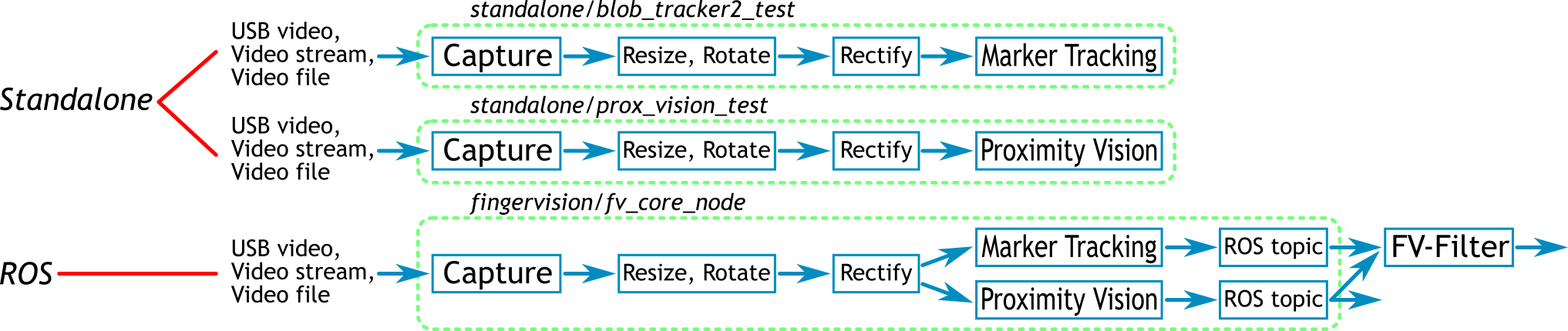

FV-Filter is designed as a ROS node. Such a component-based software design is good for changing the filter component (node). FV-Filter is implemented with Python. Although the execution speed is reduced, it is easy to modify the filter design.

↑

Filters †

For the marker tracking result:

  • Converting the marker movement to force and torque estimate with Marker Tracking#ForceEst.

For the proximity vision result:

  • Scaling the data.
  • Computing the center position, the orientation, and the area of the object from the image moment.
↑

Implementation: fv_filter1.py †

The filter script is included in the ROS package fingervision: fingervision/scripts/fv_filter1.py.

It subscribes NAMESPACE/CAMERANAME/blob_moves and NAMESPACE/CAMERANAME/prox_vision of the ROS node. Refer to ROS Package#Topics for these topics.

#!/usr/bin/python
#\file    fv_filter1.py
#\brief   Filter the output topics of fv_core_node.
#         BlobMoves: Convert blob_moves to force and torque estimates.
#         ProxVision: Convert prox_vision to object center, orientation, and area.
#\author  Akihiko Yamaguchi, info@akihikoy.net
#\version 0.1
#\date    Aug.10, 2018
#\version 0.2
#\date    Jul.3, 2019
#         Added filters to get velocities of object, filtered velocities, etc.
import roslib; roslib.load_manifest('ay_py')
import rospy
from ay_py.core import *
from ay_py.ros import *  # LRToStrS, etc.
roslib.load_manifest('fingervision_msgs')
import fingervision_msgs.msg
import fingervision_msgs.srv
import geometry_msgs.msg

def BlobMoves(msg,fv,side,pub_fwrench,pub_wrench,options):
  cx= msg.width/2
  cy= msg.height/2
  div= float(msg.width+msg.height)/2.0
  def convert_raw(mv):
    fscale= [1.0,1.0,1.0]
    rxy= ((mv.Pox-cx)/div, (mv.Poy-cy)/div)
    fxy= (mv.DPx, mv.DPy)
    fz= la.norm(fxy) if options['normal_f_mode']=='xy_norm' else (max(0.0,mv.DS) if options['normal_f_mode']=='marker_size' else None)
    if side==RIGHT:
      f= [+(fxy[0]*fscale[0]), -(fz*fscale[2]), -(fxy[1]*fscale[1])]
      p= [+rxy[0], -rxy[1]]
    elif side==LEFT:
      f= [-(fxy[0]*fscale[0]), +(fz*fscale[2]), -(fxy[1]*fscale[1])]
      p= [-rxy[0], -rxy[1]]
    else:
      raise NotImplemented('fv_filter1.BlobMoves: side not in (0,1) is not considered.')
    return p+f
  def convert_wrench(p_f):
    p,f= p_f[:2], p_f[2:]
    tscale= 1.0
    tau= np.cross([p[0],0.0,p[1]],f)*tscale
    return np.concatenate((f,tau.tolist()))
  def convert_dstate(p_f):
    p,f= p_f[:2], p_f[2:]
    fz= abs(f[1])
    if fz<0.8:  dstate= 0
    elif fz<1.8:  dstate= 1
    elif fz<2.5:  dstate= 3
    else:  dstate= 5
    return dstate
  posforce_array= np.array([convert_raw(mv) for mv in msg.data])
  force_array= np.array([convert_wrench(p_f) for p_f in posforce_array])
  dstate_array= [convert_dstate(p_f) for p_f in posforce_array]
  if len(force_array)>0:
    if options['reduction_mode']=='mean':  force= np.mean(force_array, axis=0)
    elif options['reduction_mode'] in ('median','median+'):
      force= np.percentile(force_array, 50., axis=0)
      if options['reduction_mode']=='median+':  force[1]= np.percentile(force_array[:,1], 75.)
  else:
    force= []
  dstate= sum(dstate_array)

  msg2= fingervision_msgs.msg.Filter1Wrench()
  msg2.header= msg.header
  msg2.header.frame_id= fv  #NOTE: Overwriting with a new frame ID (this is useful for duplication).
  msg2.fv= fv
  msg2.posforce_array= posforce_array.ravel()  #Serialized
  msg2.force_array= force_array.ravel()  #Serialized
  msg2.dstate_array= dstate_array
  msg2.force= force
  msg2.dstate= dstate
  pub_fwrench.publish(msg2)

  msg3= geometry_msgs.msg.WrenchStamped()
  msg3.header= msg.header
  msg3.header.frame_id= fv  #NOTE: Overwriting with a new frame ID (this is useful for duplication).
  if len(force)==6:
    VecToXYZ(force[:3], msg3.wrench.force)
    VecToXYZ(force[3:], msg3.wrench.torque)
  pub_wrench.publish(msg3)

def MovingAverageFilter(value,log,length):
  log.append(value)
  if len(log)>length:  log.pop(0)
  return np.mean(log,0)

def ProxVision(msg,fv,pub_fobjinfo,options,state):
  cx= msg.width/2
  cy= msg.height/2
  diva= float(msg.width*msg.height)
  #Object and movement detection (shrunken form, e.g. 3x3 mat)
  obj_s= [i/diva for i in msg.ObjS]  #FIXME: Do not divide by diva since MvS elements are already normalized by the local area!!! 255 would be better
  mv_s= [100.0*i/diva for i in msg.MvS]  #FIXME: Do not divide by diva since MvS elements are already normalized by the local area!!! 255 would be better
  #Get object center and orientation from moment
  m00,m10,m01= msg.ObjM_m[:3]
  mu20,mu11,mu02= msg.ObjM_mu[:3]
  if m00>0.0:
    obj_center= [(m10/m00-cx)/msg.width, (m01/m00-cy)/msg.height]
    obj_orientation= 0.5*math.atan2(2.0*mu11/m00, (mu20/m00-mu02/m00))
    obj_area= m00/diva
  else:
    obj_center= [0.0, 0.0]
    obj_orientation= 0.0
    obj_area= 0.0

  #Temporal filters:
  if 'state_initialized' not in state:
    state.state_initialized= True
    state.last_tm= msg.header.stamp
    state.last_obj_center= obj_center
    state.last_obj_orientation= obj_orientation
    state.last_obj_area= obj_area
    state.obj_area_log= []
    state.d_obj_center_log= []
    state.d_obj_orientation_log= []
    state.d_obj_area_log= []

  dt= (msg.header.stamp-state.last_tm).to_sec()
  if dt>0.0:
    angle_mod= lambda q: Mod(q+0.5*math.pi,math.pi)-0.5*math.pi
    d_obj_center= [(obj_center[i]-state.last_obj_center[i])/dt for i in (0,1)]
    d_obj_orientation= angle_mod(obj_orientation-state.last_obj_orientation)/dt
    d_obj_area= (obj_area-state.last_obj_area)/dt
  else:
    d_obj_center= [0.0, 0.0]
    d_obj_orientation= 0.0
    d_obj_area= 0.0

  state.last_tm= msg.header.stamp
  state.last_obj_center= obj_center
  state.last_obj_orientation= obj_orientation
  state.last_obj_area= obj_area

  obj_area_filtered= MovingAverageFilter(obj_area,state.obj_area_log,options['filter_len'])
  d_obj_center_filtered= MovingAverageFilter(d_obj_center,state.d_obj_center_log,options['filter_len'])
  d_obj_orientation_filtered= MovingAverageFilter(d_obj_orientation,state.d_obj_orientation_log,options['filter_len'])
  d_obj_area_filtered= MovingAverageFilter(d_obj_area,state.d_obj_area_log,options['filter_len'])

  msg2= fingervision_msgs.msg.Filter1ObjInfo()
  msg2.header= msg.header
  msg2.header.frame_id= fv  #NOTE: Overwriting with a new frame ID (this is useful for duplication).
  msg2.fv= fv
  msg2.mv_s= mv_s
  msg2.obj_s= obj_s
  msg2.obj_center= obj_center
  msg2.obj_orientation= obj_orientation
  msg2.obj_area= obj_area
  msg2.d_obj_center= d_obj_center
  msg2.d_obj_orientation= d_obj_orientation
  msg2.d_obj_area= d_obj_area
  msg2.obj_area_filtered= obj_area_filtered
  msg2.d_obj_center_filtered= d_obj_center_filtered
  msg2.d_obj_orientation_filtered= d_obj_orientation_filtered
  msg2.d_obj_area_filtered= d_obj_area_filtered
  pub_fobjinfo.publish(msg2)

if __name__=='__main__':
  options={
    'normal_f_mode': 'marker_size',  #Options: 'xy_norm','marker_size'
    'reduction_mode': 'mean',  #Options: 'mean','median','median+'
    'filter_len': 5,
    }

  rospy.init_node('fv_filter1')
  fv= rospy.get_param('~fv', 'fv')
  fv_out= rospy.get_param('~fv_out', '')
  side_str= rospy.get_param('~side', 'r')
  options['normal_f_mode']= rospy.get_param('~normal_f_mode', options['normal_f_mode'])
  options['reduction_mode']= rospy.get_param('~reduction_mode', options['reduction_mode'])
  options['filter_len']= rospy.get_param('~filter_len', options['filter_len'])
  if fv_out=='':  fv_out=fv
  side= StrToLR(side_str)
  if side is None:  side= StrToID(side_str)

  print '''FV-Filter {node}
    FV: {fv}
    FV_out: {fv_out}
    Side: {side}
    Options: {options}'''.format(node=rospy.get_name(),fv=fv,fv_out=fv_out,side=side,options=options)

  state_fobjinfo= TContainer(debug=True)

  #Filtered wrench:
  pub_fwrench= rospy.Publisher(rospy.get_namespace()+'fv_filter1_wrench',
                               fingervision_msgs.msg.Filter1Wrench, queue_size=10)
  #Average wrench:
  pub_wrench= rospy.Publisher(rospy.get_namespace()+'{fv_out}/wrench'.format(fv_out=fv_out),
                              geometry_msgs.msg.WrenchStamped, queue_size=10)
  #Filtered object info:
  pub_fobjinfo= rospy.Publisher(rospy.get_namespace()+'fv_filter1_objinfo',
                                fingervision_msgs.msg.Filter1ObjInfo, queue_size=10)

  sub_bm= rospy.Subscriber(rospy.get_namespace()+'{fv}/blob_moves'.format(fv=fv),
                           fingervision_msgs.msg.BlobMoves, lambda msg:BlobMoves(msg,fv_out,side,pub_fwrench,pub_wrench,options))
  sub_pv= rospy.Subscriber(rospy.get_namespace()+'{fv}/prox_vision'.format(fv=fv),
                           fingervision_msgs.msg.ProxVision, lambda msg:ProxVision(msg,fv_out,pub_fobjinfo,options,state_fobjinfo))
  rospy.spin()
↑

Topics †

fv_filter1.py publishes three topics.

  • NAMESPACE/fv_filter1_wrench: Force and torque (wrench) estimate for all markers. Message type: fingervision_msgs/Filter1Wrench
  • NAMESPACE/CAMERANAME/wrench: Average force and torque (wrench). Useful to visualize on RViz. Message type: geometry_msgs/WrenchStamped
  • NAMESPACE/fv_filter1_objinfo: Result of the filter on the proximity vision. Message type: fingervision_msgs/Filter1ObjInfo
↑

fv_filter1_wrench †

Message type: fingervision_msgs/Filter1Wrench

Header header

#FingerVision ID (== camera name)
string fv

#Array of [px,py,fx,fy,fz] for all markers
#where [px,py]: position on the sensor frame, [fx,fy,fz]: force.
float32[] posforce_array

#Array of wrench=[fx,fy,fz,tx,ty,tz] for all markers
#where [fx,fy,fz]: force, [tx,ty,tz]: torque.
float32[] force_array

#Array of discrete state for all markers.
#A discrete state is in {0,1,3,5} that denotes a rough strength of the force.
int32[] dstate_array

#Average of force_array.
float64[] force

#Sum of dstate_array.
int32 dstate
↑

fv_filter1_objinfo †

Message type: fingervision_msgs/Filter1ObjInfo

Header header

#FingerVision ID (== camera name)
string fv

#Array of slips (slip distribution), which is a serialized list of 3x3 matrix.
#Each cell in the 3x3 matrix is the sum of moving pixels in the cell.
float32[] mv_s

#Array of object existence, which is a serialized list of 3x3 matrix.
#Each cell in the 3x3 matrix is the sum of object pixels in the cell.
float32[] obj_s

#Object center position [px,py] (position on the sensor frame).
float64[] obj_center

#Object orientation.
float64 obj_orientation

#Object area.
float64 obj_area

#obj_center/dt (velocity of the object center)
float64[] d_obj_center

#obj_orientation/dt (angular velocity of the object orientation)
float64 d_obj_orientation

#obj_area/dt (speed of the object area change)
float64 d_obj_area

#Filtered values (moving average filter is applied)
float64 obj_area_filtered
float64[] d_obj_center_filtered
float64 d_obj_orientation_filtered
float64 d_obj_area_filtered
↑

Parameters †

The following parameters should be provided:

  • fv: CAMERANAME.
  • side: 'l' (left) or 'r' (right) side of the FingerVision on the gripper. Two finger gripper is assumed. This information is used to decide the direction of force.
↑

Usage †

Refer to the use of filter in ROS Package.
